SOLAR PANEL

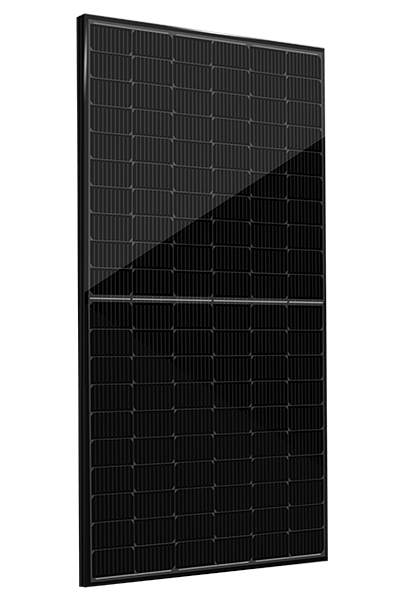

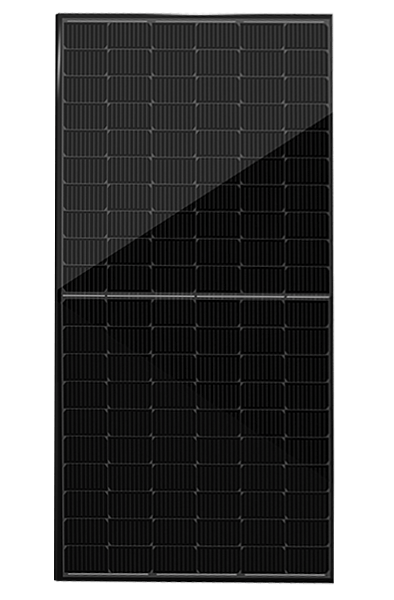

L'LIOS Black Module 410 Wp

Combine sleek design with powerful performance using the L'LIOS Black Module 410 Watt Solar Panel. Featuring a dark elegance and cutting-edge technology, it’s crafted for superior energy output and long-term reliability.

Anti-Reflective (AR) Coated Glass Anti-Reflective Surface

Positive Power Tolerance with Current Binning to Prevent Mismatch Losses

Pre and Post EL Checking With High Resolution Camera

IP68 Junction Box for Long Term Endurance

ELECTRICAL PERFORMANCE [Note: Power tolerance: 0 ~ +4.99 W. Power measurement uncertainty: < ±3%. Average value of NOCT: 45.08 ± 2 °C]

ELECTRICAL CHARACTERISTICS* RS410108TGC

STC    NOCT

Nominal Maximum Power (Pmax)

410 W 307 W

Optimum Operating Voltage (Vmp)

32.52 V 30.54 V

Optimum Operating Current (Imp)

12.62 A 10.08 A

Open Circuit Voltage (Voc)

38.67 V 36.47 V

Short Ciruit Current (Isc)

13.30 A 10.72 A

Module Eff(%)

21.01 %

BIFACIAL OUTPUT – BACKSIDE POWER GAIN @ STC* [Bifaciality Factor: 80% ± 10%]

[Note: The bifacial gain depends on the power plant design and site conditions.]

5% Nominal Maximum Power (Pmax)
Module Short Circuit Current / Efficiency 		430 W
13.96 A / 22.04 %
10% Nominal Maximum Power (Pmax)
Module Short Circuit Current / Efficiency 		451 W
14.63 A / 23.12 %
25% Nominal Maximum Power (Pmax)
Module Short Circuit Current / Efficiency 		512 W
16.62 A / 26.24 %
Dimensions

1722(L) x 1133(W) x 35(T)
Weight(kg)

25

Cell type / No Of Cell

108 Half-cut N-type TOPCon Bifacial Solar cells

Frame

Anodized Aluminum Alloy (6005, Temper T6, Black colour)
Front Cover

Semi-Tempered AR coated Glass (2 mm thick )
Encapsulate

PID resistant and UV resistant Polymeric Film

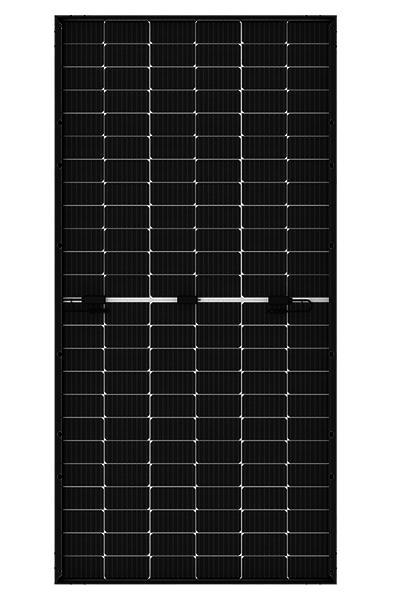

Back Cover

Semi-Tempered Glass (2 mm thick)
Junction Box

30A Split Junction Box (3 nos. with individual Bypass Diode) – Weatherproof (IP68)
Bypass Diode

50 A, 45 V, 200 °C max. junction temperature
Cable

4 sq. mm, 300 mm length (Customised cable length available on request)
Connectors

MC4 compatible (MC4 original available on request)
Application Class Rating

Class A

Safety Class Rating

Class II

Mechanical Load Test

5400 Pa-Front; 2400 Pa-Back (as per IEC & UL)
Mounting Holes Pitch (Y)-mm

[A] 1000, [B] 860, (Holes at 400 mm Y-pitch for tracker can be provided on customer request)

Mounting Holes Pitch (X)-mm

1095

STACKING STANDARD 20FT 40FT
No. of Modules per Container:

186

806
No. of Pallets per Container:

6

26

No. of Modules per Pallet/Weight:

31 Nos/815 Kg

Pallet Dimensions in mm:

1770(L)*1130(W)*1275(H)
